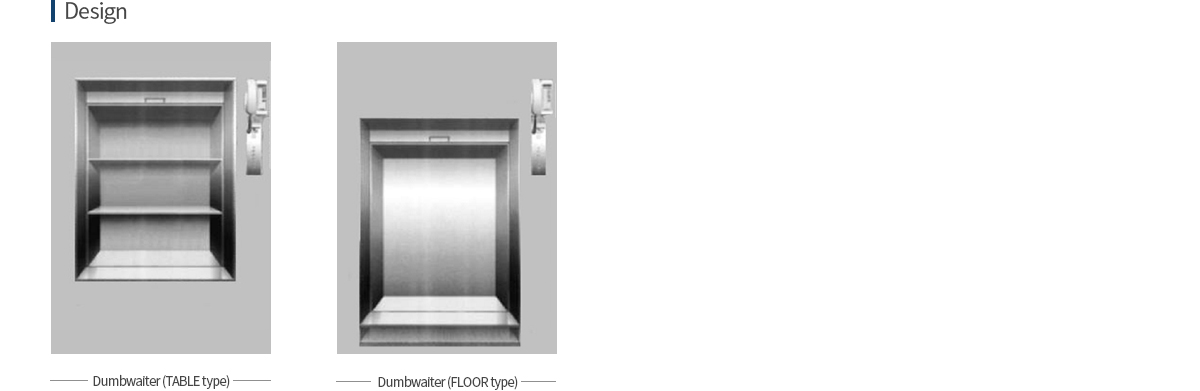

Dumbwaiter

No.	TYPE		Flg.	MAX LOAD (kg)	SPEED (m/min)	DOOR TYPE		OPENING	CAR SIZE	HOISTWAY			OHI(OVER HEAD)		P (Pit)	OH (OVER HEAD)	Machine room	POWER (kw)
						DOOR	CAR DOOR	W×H	B (depth)	X (size)	Y(depth)		CAR DOOR (Exists)	CAR DOOR (Not exists)
						DOOR	CAR DOOR	W×H	B (depth)	X (size)	CAR DOOR (Exists)	CAR DOOR (Not exists)	CAR DOOR (Exists)	CAR DOOR (Not exists)
1	TABLE TYPE	GJDWT-50S-20	1	50	20	2-part door opening and closing at top and bottom	2-part door opening and closing at top and bottom	500×700	550	980	700	740	1285	1476	800	800	1800	0.75
2		GJDWT-50D-20	2	50				500×700	550	980		780	1285	1476	800	800	1800
3		GJDWT-75S-20	1	75				800×800	600	1030	750	790	1360	1550	800	800	1800
4		GJDWT-75D-20	2	75				800×800	600	1030		830	1360	1550	800	800	1800
5		GJDWT-100S-20	1	100				700×900	700	1130	850	890	1510	1700	800	800	1800	1.5
6		GJDWT-100D-20	2	100				700×900	700	1130		930	1510	1700	800	800	1800
7		GJDWT-150S-20	1	150				800×1000	800	1230	950	990	1660	1850	800	800	1800
8		GJDWT-150D-20	2	150				800×1000	800	1230		1030	1660	1850	800	800	1800
9	DOOR TYPE	GJDWT-200S-30	1	200	30	2-part or 1-part door opening and closing at top	2-part or 1-part door opening and closing at top	800×1200	1260	1300		1190	When entrance to highest floor is 1-part door: 2560 When entrance to highest floor is 2-part door: 2560		When entrance to highest floor is 1-part door: 300 When entrance to highest floor is 2-part door: 690			2.2
10		GJDWT-200D-30	2	200				800×1200	1260	1300		1230
11		GJDWT-300S-30	1	300				1000×1200	1000	1500		1340
12		GJDWT-300D-30	2	300				1000×1200	1000	1500		1380
