Vertical conveyor

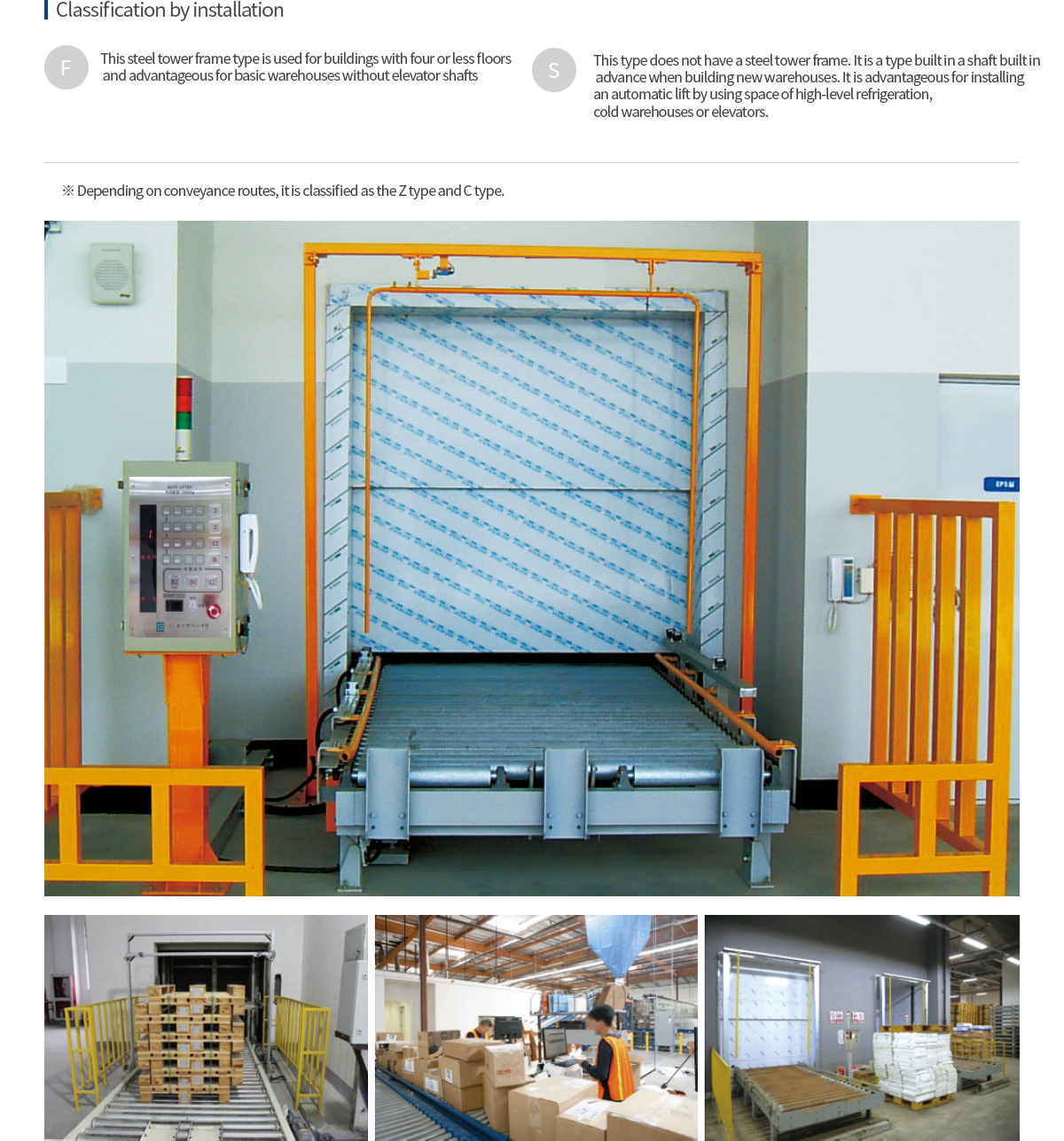

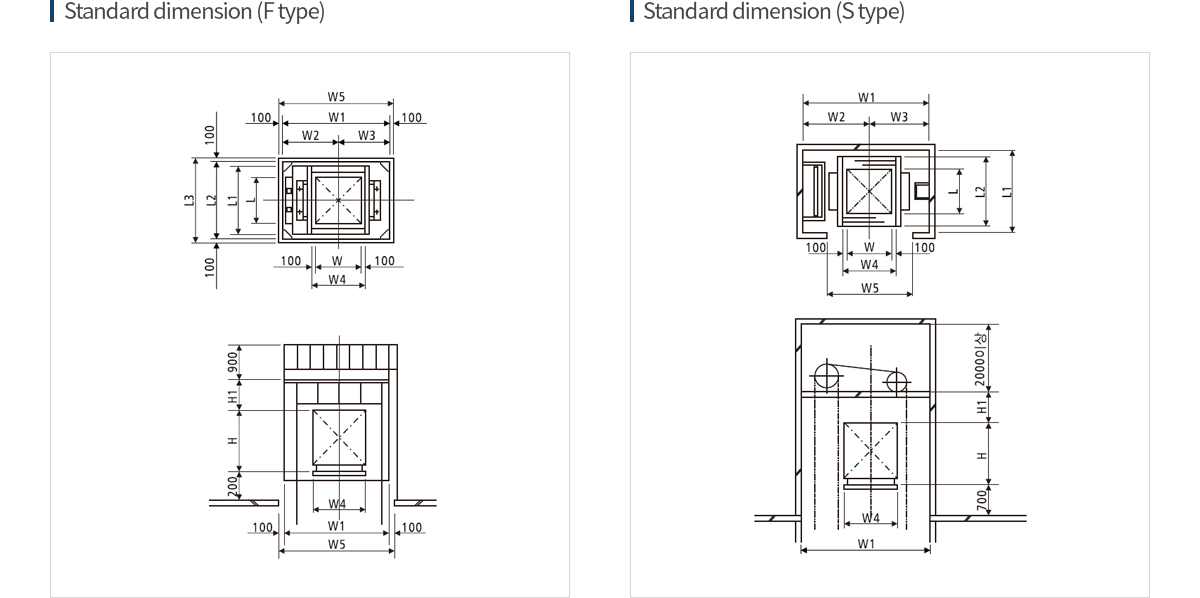

Type	Pallet dimensions		Freight dimension		Conveyor dimensions		Dimension of Related Machinery (F type)							Dimension of Related Machinery (S type)
Type	W	L	Freight dimension		W4	L2	W1	W2	W3	W5	L1	L3	H1	W1	W2	W3	W5	L1	H1
11	1,100	1,100	1,300	1,300	1,500	1,890	2,900	1,650	1,250	3,100	2,400	2,600	600	3,100	1,700	1,400	2,200	2,600	900
13	1,300	1,300	1,500	1,500	1,700	2,000	3,100	1,750	1,350	3,300	2,600	2,800	600	3,300	1,800	1,500	2,400	2,700	900
15	1,500	1,500	1,800	1,800	1,900	2,220	3,300	1,850	1,450	3,500	2,800	3,000	600	3,500	1,900	1,600	2,600	2,900	900
18	1,800	1,800	2,100	2,100	2,200	2,440	3,600	2,000	1,600	3,800	3,100	3,300	600	3,800	2,050	1,750	2,900	3,200	900
20	2,000	2,000	2,300	2,300	2,400	2,660	3,800	2,100	1,700	4,000	3,300	3,500	600	4,000	2,150	1,850	3,100	3,300	900
