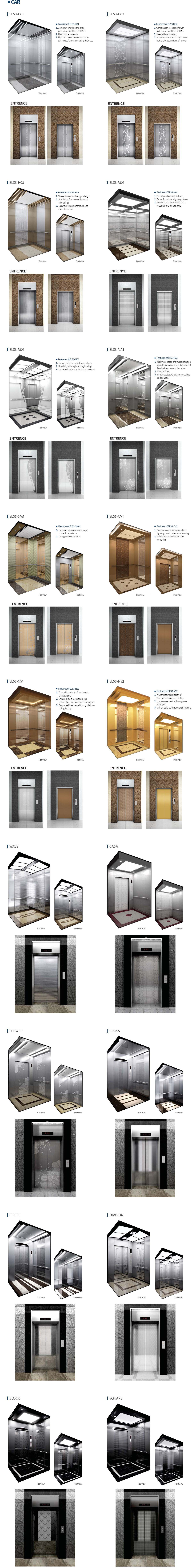

Passenger elevators

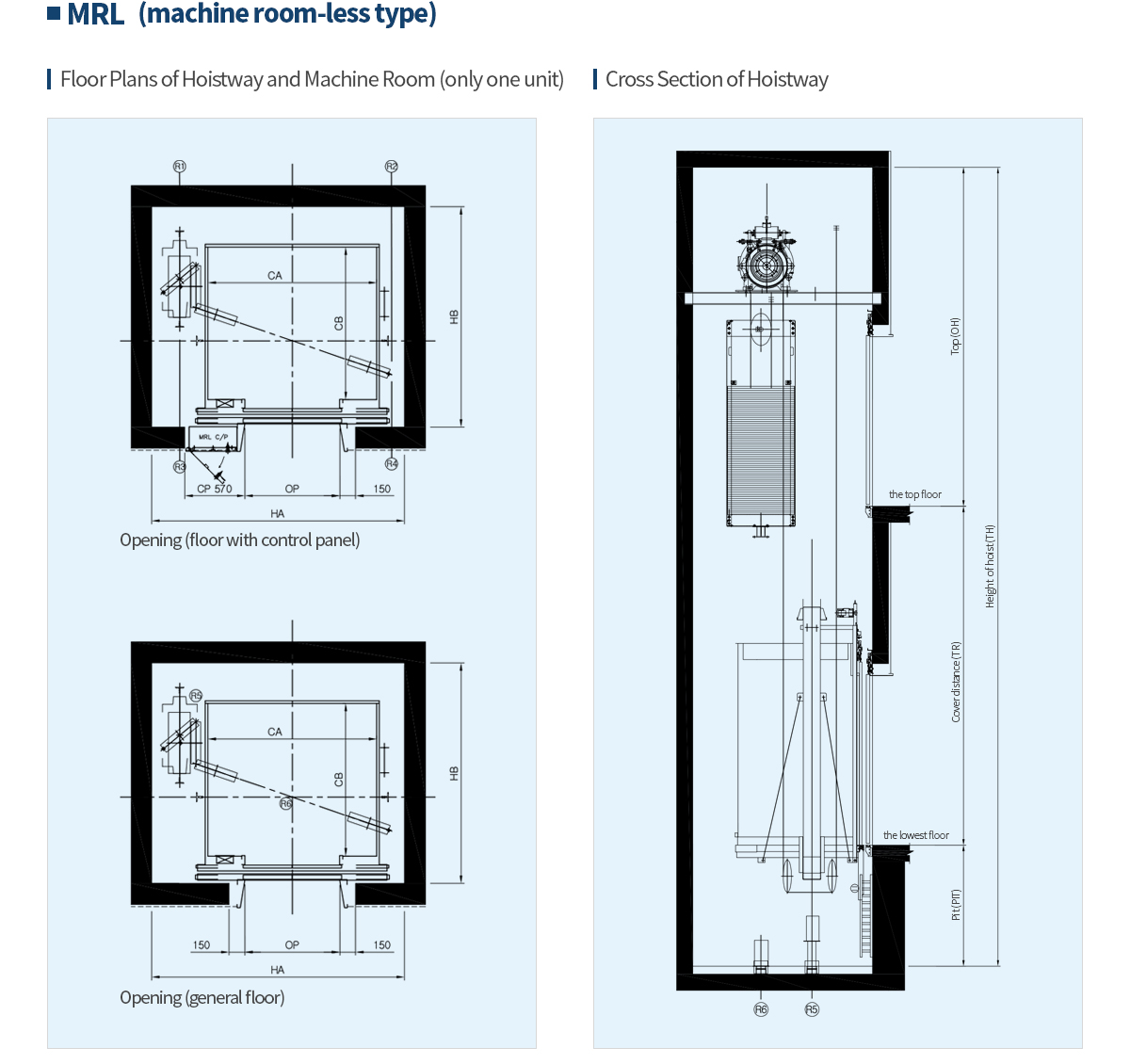

speed | Maximum no. of passengers | Entrance size | CAR INSIDE | Size of hoistway | Motor | Reaction force of machine room (kg) | Reaction force of pit (N) | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
No. of Passengers | kg | OP | CA × CB | HA | HB | (kW) | R1 | R2 | R3 | R4 | R5 | R6 | |
60 90 105 |
8 | 550 | 800 | 1400 × 1000 | 2100 | 1800 | 4.5 6.8 7.9 |
2255 | 1720 | 725 | 1910 | 58468 | 47245 |
60 90 105 |
9 | 600 | 800 | 1400 × 1050 | 2100 | 1850 | 4.5 6.8 7.9 |
2381 | 1764 | 739 | 1980 | 61215 | 48972 |
60 90 105 |
10 | 680 | 800 | 1400 × 1150 | 2100 | 1900 | 4.5 6.8 7.9 |
2490 | 1847 | 830 | 2072 | 65139 | 51264 |
60 90 105 |
11 | 750 | 800 | 1400 × 1300 | 2100 | 2000 | 5.5 8.3 8.6 |
2600 | 1922 | 900 | 2158 | 68670 | 53367 |
60 90 105 |
13 | 900 | 900 | 1600 × 1300 | 2300 | 2150 | 6.7 10 11.7 |
2927 | 2332 | 1013 | 2174 | 77303 | 58939 |
60 90 105 |
15 | 1000 | 900 | 1600 × 1400 | 2300 | 2150 | 6.7 10 11.7 |
3173 | 2453 | 1027 | 2287 | 82404 | 62000 |
60 90 105 |
17 | 1150 | 1000 | 1800 × 1450 | 2600 | 2250 | 7.9 11.8 13.9 |
3155 | 2934 | 1485 | 2232 | 91037 | 67572 |
60 90 105 |
20 | 1350 | 1000 | 1800 × 1650 | 2600 | 2400 | 6.7 10 11.7 |
4080 | 3915 | 1920 | 2979 | 117720 | 90174 |
60 90 105 |
24 | 1600 | 1100 | 2000 × 1700 | 2850 | 2600 | 11 17.6 19.2 |
4692 | 4525 | 2208 | 3329 | 135378 | 102731 |
- 1. Please contact our company for sizes other than the standard size.(including those of models with fire prevention doors)
- 2. In the case of elevators for disabled people, CA is 1600 or more and CB is 1350 or more.
- 3. If the gap between platforms exceeds 11m, emergency escape must be applied to the platforms. So, please contact us.
- 4. A cylinder type can be used for 11 or more people. Please contact us for more information about hoistway sizes.
- 5. If you want to install two or more cars in parallel, please contact us regarding the size of the hoistway and the location of the entrance and exit.
No. of passengers | Speed | Top | Pit |
---|---|---|---|
(m/min) | (OH) | (PIT) | |
8~17 | 45, 60 90 105 |
4200 4200 4200 |
1500 1800 2100 |
20, 24 | 45, 60 90 105 |
4200 4350 4450 |
1500 1800 2100 |
- 1. The above dimensions apply when the inside height of a car is 2250mm.
- For other cases, please contact us
- 2. If the inside of the car is 2450mm, it is OH + 200mm.
- 3. Since the above dimensions are after a waterproof finish, please be sure to apply a construction error.
- 4. When installing two or more keys in parallel, it is necessary to additionally partition the hoistway.
- 5. If the finish material is made of glass, laminated glass must be applied. So, please contact us.
- 6. Lights should be installed on the top and bottom of a hoistway.
- 7. A forced ventilation system should be installed on the upper part of a hoistway.
- 8. If the width of the car and the width of the doorway do not match the above dimensions,
- please contact us.
Rated speed(m/mim) | 60 | 90 | 105 |
---|---|---|---|
Height of machine room(HM) | 2,200 | 2,200 | 2,200 |
Overhead(OH) | 4,600 | 4,800 | 5,000 |
Pit(PIT) | 1,500 | 1,800 | 2,100 |
- Note 2) Formula to calculate calorific value at machine room
kcal/h = F (time) X L (coefficient) X S (rated speed) F (Fator: coefficient): 1/40 - Note 3) Excluded construction work is for buildings.
- Note 4) Machine room temperature should be kept below 40 ℃ and its humidity below 90%.
Please finish with windows, ventilators and a dustproof structure.

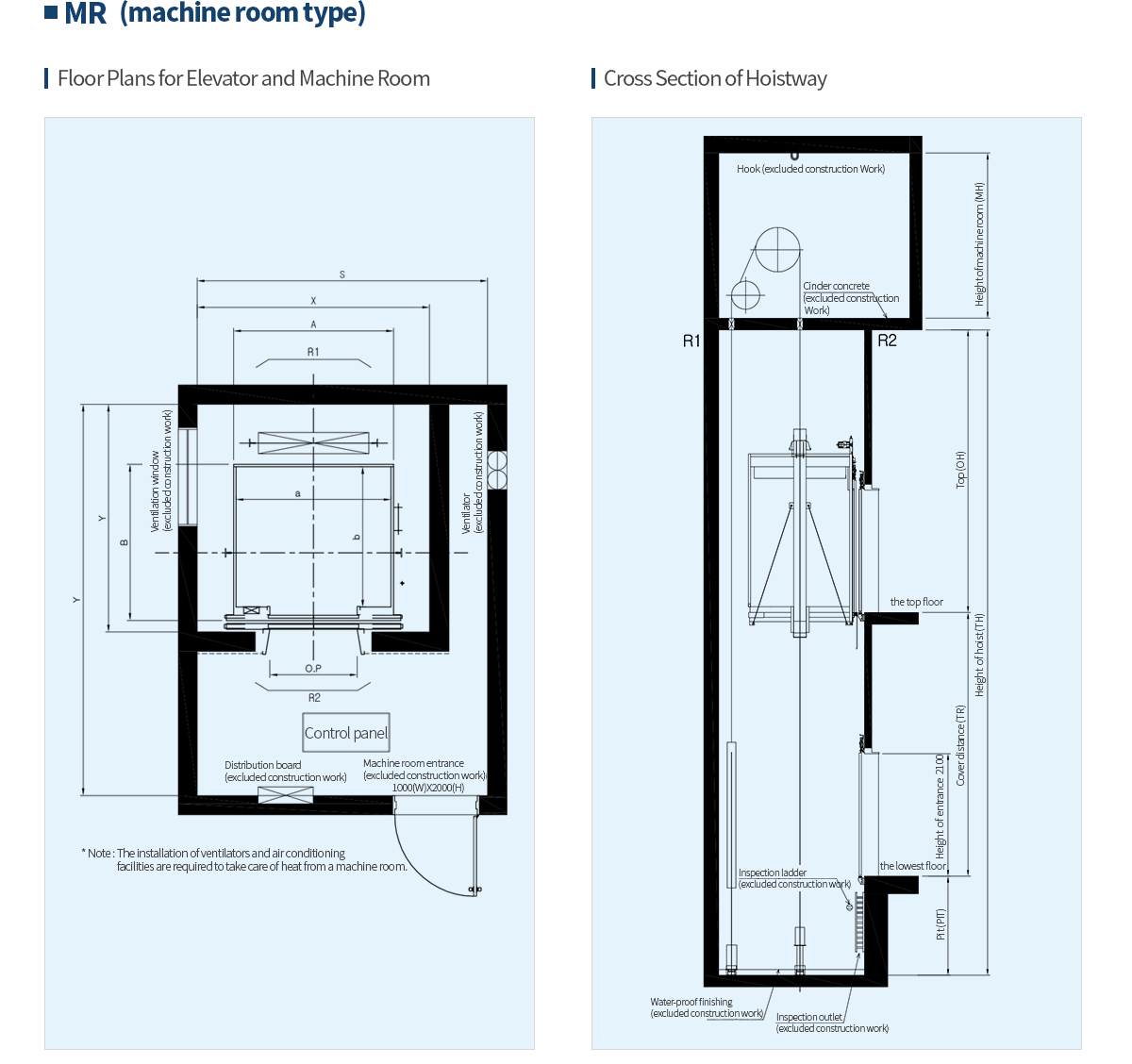

Speed | Maximum no. of passengers | Entrance size | CAR standard | Hoistway standard | Machine standard | Reaction force of machine room | Reaction force of pit | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
No, of passengers | kg | mm | Interior | 1 single unit | 2 in parallel | 1 single unit | 2 in parallel | R1 | R2 | R3 | R4 | |||||
AN×BN | AH | BH | AH | BH | AM | BM | AM | BM | kg | kg | kg | kg | ||||
60 | 6 | 450 | 800 | 1400 × 850 | 1800 | 1450 | 3800 | 1450 | 2100 | 3200 | 4200 | 3200 | 3600 | 2000 | 4200 | 3700 |
8 | 550 | 800 | 1400 × 1030 | 1800 | 1630 | 3800 | 1630 |
2100 | 3400 | 4200 | 3400 | 4050 | 2500 | 4700 | 3900 | |
9 | 600 | 800 | 1400 × 1100 | 1800 | 1700 | 3800 | 1700 | 2100 | 3500 | 4200 | 3500 | 4100 | 2500 | 4900 | 4000 | |
10 | 680 | 800 | 1400 × 1250 | 1800 | 1850 | 3800 | 1850 | 2200 | 3650 | 4400 | 3650 | 4200 | 2810 | 5300 | 4400 | |
11 | 750 | 800 | 1400 × 1350 | 1800 | 1950 | 3800 | 1950 | 2200 | 3750 | 4400 | 3750 | 4550 | 2900 | 5600 | 4500 | |
13 | 900 | 900 | 1600 × 1350 | 2100 | 2000 | 4400 | 2000 | 2350 | 3800 | 4700 | 3800 | 5100 | 3800 | 7100 | 5700 | |
15 | 900 | 900 | 1600 × 1350 | 2100 | 2000 | 4400 | 2000 | 2350 | 3800 | 4700 | 3800 |
5100 | 3800 | 7100 | 5700 | |
17 | 1150 | 1000 | 1800 × 1500 | 2400 | 2250 | 4800 | 2250 | 2600 | 4050 | 5200 | 4050 | 8000 | 5200 | 9500 | 4800 | |
1100 | 2000 × 1350 | 2600 | 2100 | 5200 | 2100 | 2800 | 3900 | 5600 | 3900 | 8000 | 5200 | 9500 | 4800 | |||
20 | 1350 | 1000 | 1800 × 1700 | 2400 | 2450 | 4800 | 2450 | 2600 | 4250 | 5200 | 4250 | 8900 | 6000 | 10800 | 8800 | |
1100 | 2000 × 1500 | 2600 | 2250 | 5200 | 2250 | 2800 | 4050 | 5600 | 4050 | 8900 | 6000 | 10800 | 8800 | |||
24 | 1600 | 1000 | 2000 × 1750 | 2500 | 2500 | 5200 | 2500 | 2900 | 4300 | 5800 | 4300 | 10200 | 7000 | 12700 | 10200 | |
1100 | 2150 × 1600 | 2650 | 2350 | 5500 | 2350 | 3050 | 4150 | 6100 | 4150 | 10200 | 7000 | 12700 | 10020 | |||
90 (105) |
8 | 550 | 800 | 1400 × 1030 | 1800 | 1630 | 3800 | 1630 |
2200 | 3600 | 4400 | 3600 | 4200 | 2500 | 4850 | 4100 |
9 | 600 | 800 | 1400 × 1100 | 1800 | 1700 | 3800 | 1700 | 2200 | 3700 | 4400 | 3700 | 4500 | 3100 | 5300 | 4600 | |
10 | 680 | 800 | 1400 × 1250 | 1800 | 1850 | 3800 | 1850 | 2200 | 3850 | 4400 | 3850 | 4900 | 3400 | 6000 | 4900 | |
11 | 750 | 800 | 1400 × 1350 | 1800 | 1950 | 3800 | 1950 | 2200 | 3950 | 4400 | 3950 | 5250 | 3700 | 6300 | 5200 | |
13 | 900 | 900 | 1600 × 1350 | 2100 | 2100 | 2250 | 4400 | 21000 | 2500 | 4100 | 5000 | 5750 | 4100 | 7750 | 6300 | |
15 | 1000 | 900 | 1600 × 1500 | 2100 | 2250 | 4400 | 2250 | 2500 | 4250 | 5000 | 4250 |
6150 | 4600 | 8200 | 7100 | |
17 | 1150 | 1000 | 1800 × 1500 | 2400 | 2300 | 5000 | 2300 | 2900 | 4300 | 5800 | 4300 | 9400 | 7750 | 10900 | 9200 | |
1100 | 2000 × 1350 | 2600 | 2150 | 5400 | 2150 | 3100 | 4150 | 6500 | 4150 | 9400 | 7750 | 10900 | 9200 | |||
20 | 1350 | 1000 | 1800 × 1700 | 2400 | 2500 | 5000 | 2500 | 2900 | 4500 | 5800 | 4500 | 10000 | 8250 | 12000 | 10000 | |
1100 | 2000 × 1500 | 2600 | 2300 | 5400 | 2300 | 3100 | 4300 | 6200 | 4300 | 10000 | 8250 | 12000 | 10000 | |||
24 | 1600 | 1000 | 2000 × 1750 | 2600 | 2550 | 5400 | 2550 | 3100 | 4550 | 6250 | 4550 | 11550 | 8700 | 15000 | 12700 | |
1100 | 2150 × 1600 | 2750 | 2400 | 5700 | 2400 | 3250 | 4400 | 6500 | 4400 | 11550 | 8700 | 15000 | 12700 |
The following items are for the construction of the building in this estimate and the contract for the elevator installation work.
Please construct or supply from your company.
1. Hoistway Work
Work details | Architecture | Electricity |
---|---|---|
① Drilling holes around a wall around entrances on each floor (doors and exits, elevator buttons, location markings among others) and floor finish work (including mortar filling) | O O |
|
② Reinforcement rod work for fixing right and left side doorframes of exits | O | |
③ Construction of landing sill’s projecting parts on each floor | O | O |
④ Installing ladder to check pit and outlet (if necessary) | O | |
⑤ Waterproof treatment construction and outlet installation work in pit | O | |
⑥ Supplying and installing partitions or intermediate beam materials for hoistways (if necessary) | O | |
⑦ Piping and wiring work for elevator monitoring system from the system to hoistway when installing the system * Please contact us for details about hoistways when building a steel-structure hoistway. |
1. Machine Room Work
Work details | Architecture | Electricity |
---|---|---|
① Making entrances and rope holes, and finishing work on bottom of machine room (cinder concrete) | O | |
② Installation of pulley or hook on ceiling of machine room | O | |
③ Installation of reinforcement beams on floor of machine room (if necessary) | O | |
④ Lead-in construction to elevator power board in machine room for power supply, lighting for car and emergency lights | O | O |
⑤ Piping and wiring work outside hoistway when installing interphones in places other than machine room | O O |
|
⑥ Construction work for lighting equipment and inspection outlets in machine room | O | |
⑦ Power supply work for construction work and test operations, plus free power supply | O | |
⑧ Free power supply to office and equipment storage space for construction work |
