Multi-floor circulation type

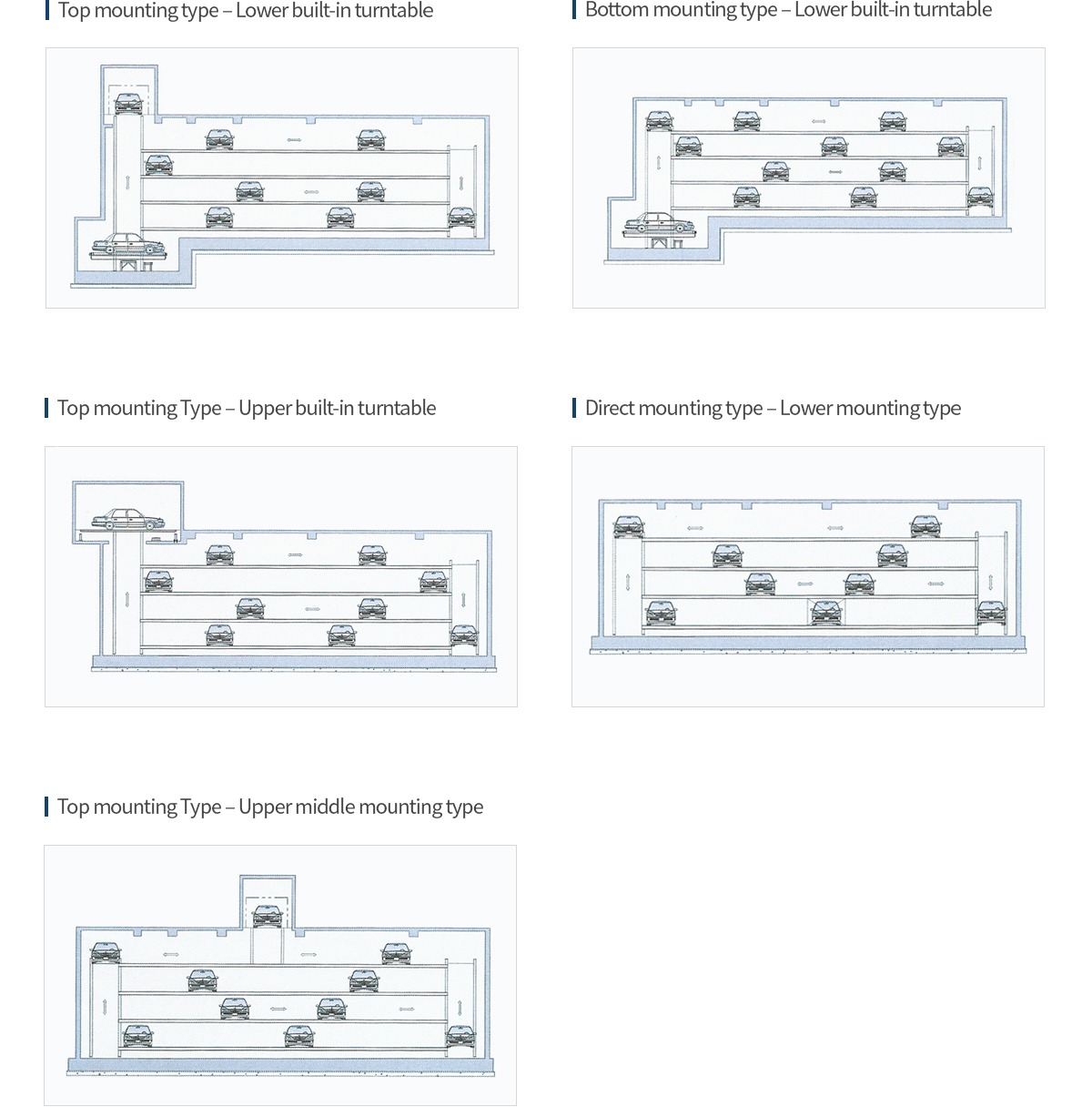

(A modified system based on inbound position)

Multi-floor circulation type
(Square/GH-UE2L-C)

Parking capacityLW
Turn table(built-in)
Medium-sized carDrive by owner
610,10010,7007,200
812,35013,1007,200
1014,60015,5007,200
1216,85017,9007,200
1419,10020,3007,200
1621,35022,7007,200
1823,60025,1007,200
2025,85027,5007,200
2228,10029,9007,200
2430,35032,3007,200
2632,60034,7007,200
2834,85037,1007,200
Acceptable vehicle specificationsLength5,050mmHeight1,600mm
Width1,900mmWeight1,850kg
Drive motorLift7.5 ~ 11kw × 2SET
Horizontal move2.2kw ~ 3.7kw ~ 5.5kw
SpeedLift17m/min
Horizontal move20m/min
Operation methodTen Kye system
Door size2,350W × 1,800H
Power220V/380V × 3 phases × 60Hz

"H"is based on architectural dimensions.

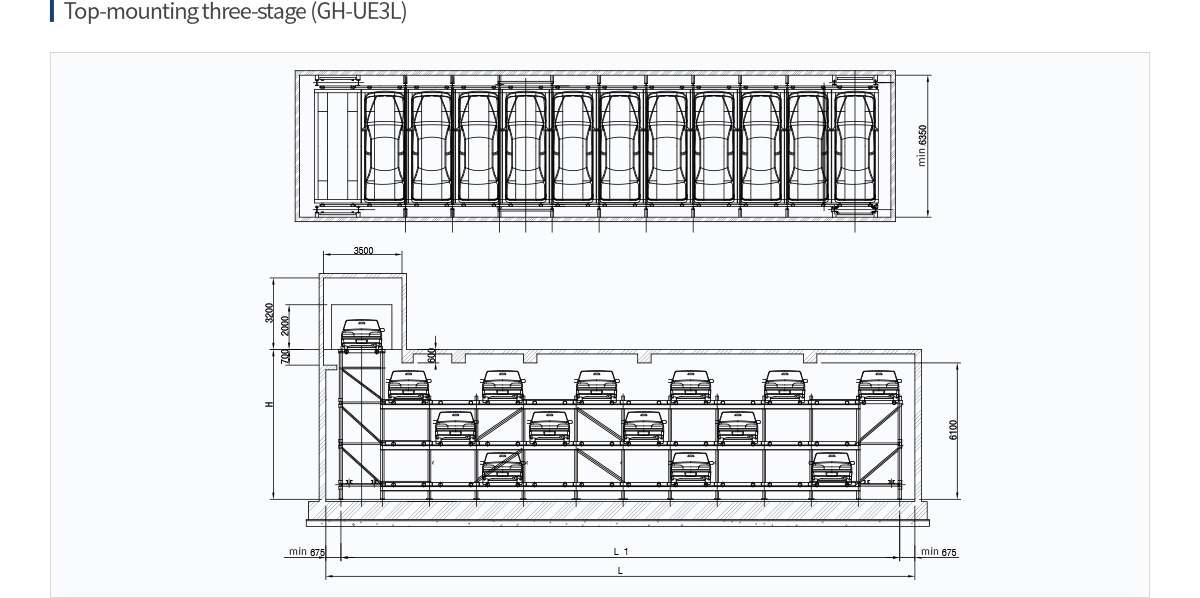

Parking capacityLW
Turn table(built-in)
Medium-sized carDrive by owner
810,40010,7007,200
1112,35013,4007,200
1414,60015,5007,200
1716,85017,9007,200
2019,10020,3007,200
2321,35022,7007,200
2623,60025,1007,200
2925,85027,5007,200
3228,10029,9007,200
Acceptable vehicle specificationsLength5,050mmHeight1,600mm
Width1,900mmWeight1,850kg
Drive motorLift7.5 ~ 11kw × 2SET
Horizontal move2.2kw ~ 3.7kw ~ 5.5kw
SpeedLift17m/min
Horizontal move20m/min
Operation methodTen Kye system
Door size2,350W × 1,800H
Power220V/380V × 3 phases × 60Hz

"H"is based on architectural dimensions.

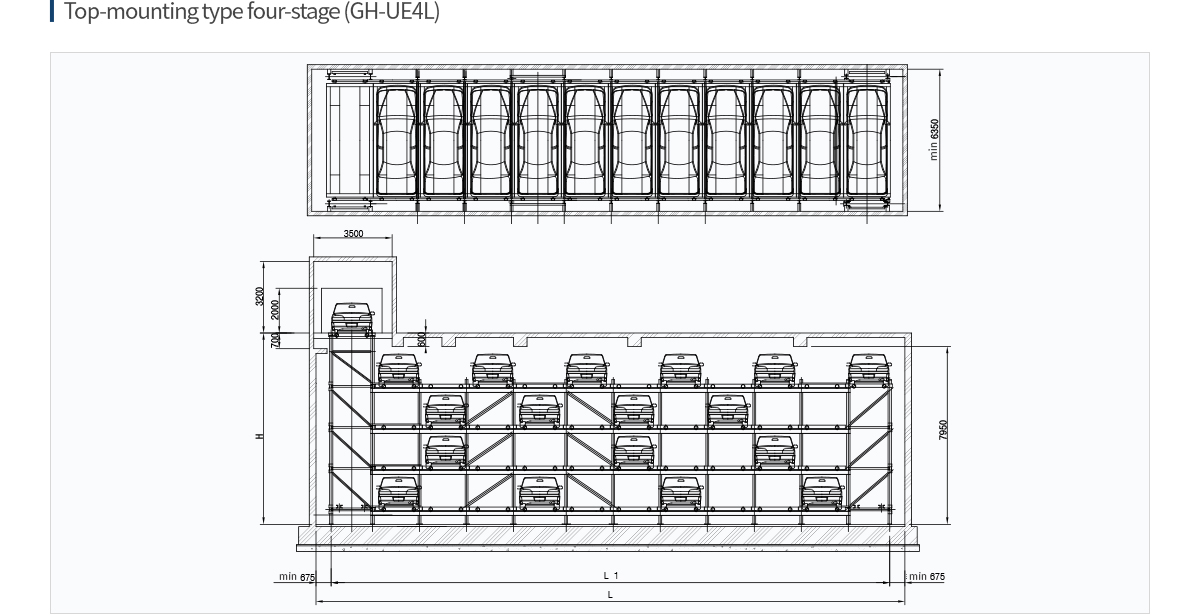

Parking capacityLW
Turn table(built-in)
Medium-sized carDrive by owner
1010,10010,7007,200
1412,35013,1007,200
1814,60015,5007,200
2216,85017,9007,200
2619,10020,3007,200
3021,35022,7007,200
3423,60025,1007,200
3825,85027,5007,200
Acceptable vehicle specificationsLength5,050mmHeight1,600mm
Width1,900mmWeight1,850kg
Drive motorLift7.5 ~ 11kw × 2SET
Horizontal move2.2kw ~ 3.7kw ~ 5.5kw
SpeedLift17m/min
Horizontal move20m/min
Operation methodTen Kye system
Door size2,350W × 1,800H
Power220V/380V × 3 phases × 60Hz

"H"is based on architectural dimensions.
